Trident
Super-compact, Portable Platform
The Trident USV™ is a remote platform purpose-built for multibeam hydrographic surveys. This trimaran collects high resolution depth data via remote control or preplanned autonomous routes, and reaches areas inaccessible by larger survey vessels.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
Compact, Flexible Survey Platform
The sonar bay of the center hull allows for flexible integration of various compact multi-beam systems, and the outriggers detach for one-person transport. Extend the capabilities and flexibility of your surveys with the Trident USV.
-
Survey Speed: 2 kn
-
Top Speed: 2.7 kn
-
Length: 1.3 m
-
Width: 880 mm
-
Main Hull Material: Brushed Aluminium
-
Outrigger Material: UV Resistant HDPE
-
Hardware: Stainless Steel
-
Weight: 31.8 kg
-
Power: 3 x 14.8 VDC 16,000mAh LiPo
-
Battery Endurance: 4 HRS
-
Remote Control: Taranis Q X7
-
Remote Range: Up to 1 km
-
Motor: 2x Brushless Thruster with Weed Guard
-
Steering: Ariculated Servo
-
GPS: All Brands
-
Echosounder: Compact Beam Sonar Systems

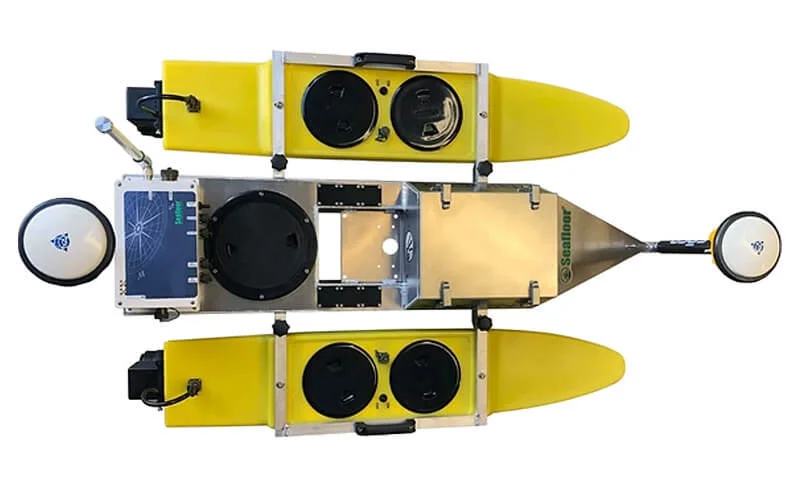

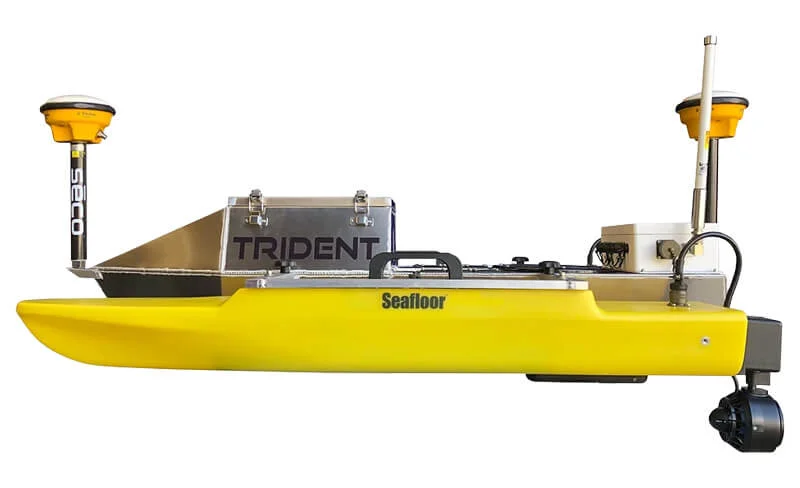

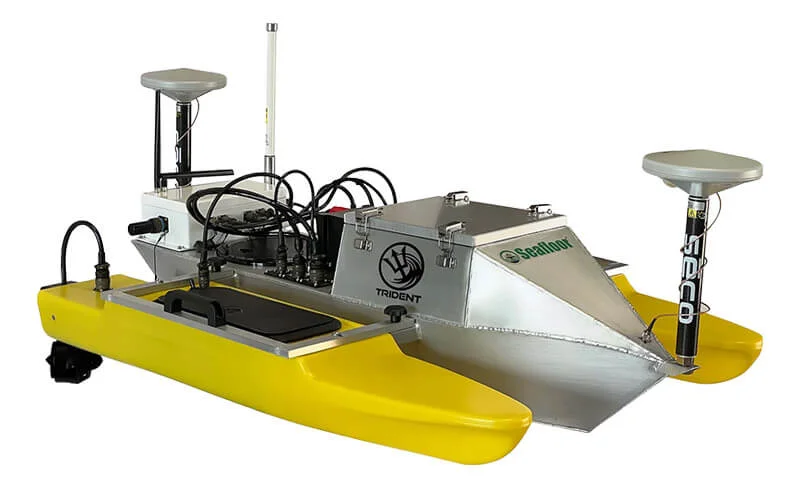

See the Trident in Action
View the Trident deployed in the field and in operation. The following videos and images demonstrate how the system performs in real survey conditions and integrates into everyday workflows.
