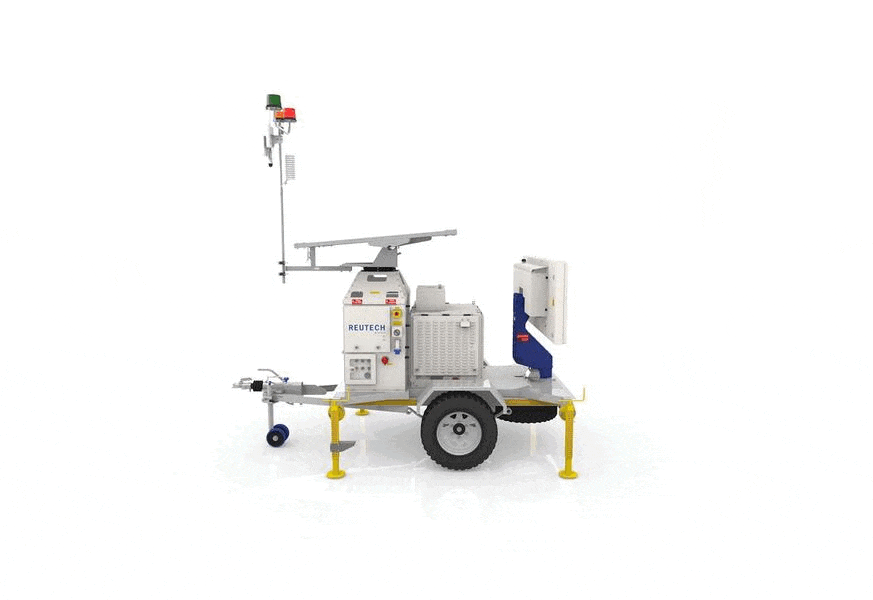

Modular Slope Monitoring Radar

MSR^IV Esprit

Radar solution for mines that struggle with rapidly changing atmospherics and fast moving slopes.

As of its first release back in 2006 the renowned MSR earned a reputation of trust in the pit slope monitoring industry, providing the capability for both critical and strategic monitoring.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Select a Country

Select Your Industry

Mobile Power and Protection

A Rugged, Intelligent Platform for Critical Mine Infrastructure

With advanced tamper-proof mechanisms, the MPP is purpose built for the most challenging of operational conditions with intelligent circuitry that ensures a reliable un-iterrupted power supply.

Brochure

Scan Speed

2D measurements are taken in less than two seconds repetitively, nearly eliminating all the false movement measurements from atmospherics. The atmospheric changes in two seconds is minimal.

A high scan speed produces the truest data, there is almost no compensation required for false movement due to atmospherics. Therefore, an insignificant amount of data is lost in processing to eliminate noise.

Instantaneous 2D Area Measurement

A whole area is scanned instantaneously in 2D with defined 3D synthetic map updates at pre-set intervals.

This ensures that environmental changes will not introduce the potential for unreliable measurements.

Critical and Strategic Monitoring

Critical monitoring: the high scan speed and instantaneous 2D area measurements detect rapid failures up to a rate of 13 500 mm/h effortlessly.

Strategic monitoring: due to the minute noise and interference, small scale movement is now easily detected. This results in predicting potential failures earlier and increasing warning times.

Resolution

The distance of the system from the pit slope, and therefore the point spacing generated for the synthetic map is paramount for defining the longitude and precision of resolution for which alarm settings are based.

The finer the precision and therefore the resolution, the more refined the displacement trend data will be for smaller detectable areas.

MSR^IV Esprit offers an operating range up to 4 000 m, providing resolution options that are exceptional.

Moving Targets

The ability to conduct near instantaneous area measurements assists with the tracking and therefore detection of moving targets such as trucks and other machinery.

This feature provides better coverage for working and production areas.

Software

MSR^IV Esprit has the most advanced slope monitoring radar software on the market.
360° view: view multiple radars’ data on a 360° 3D scene with trends plots simultaneously.
Cross platform: the advanced web based software can be viewed on various platforms such as laptops, cell phones and tablets.
The software can run on Windows, Linux, Android and iOS.

bro_msr-iv-esprit Download

Hardware Features

Integrated Hardware Built for Field Performance

MSR^IV Esprit integrates advanced radar hardware, intelligent power systems, and on-board processing into a single, robust solution. Each component is engineered to work seamlessly together, delivering reliable real-time monitoring, clear operator control, and dependable performance in demanding operational environments.

3D Proprietary MIMO Antenna Array
Antenna Positioner
Generator module
HMI Cabinet and Control Panel
On board laptop
Solar Panels
Solar Panels
WiFi & Weather Station
In-pit Alarm System

Technical Specifications

Performance Specifications You Can Rely On

Spec Sheet

Technical Specifications
Maximum Coverage	90° H x 60° V
Scan Time	Radar scan time : less than 2 seconds continuously HMI update rate : 5 minutes
Resolution	Maximum: 0.158° H x 0.0845° V
Measurement Accuracy	Sub-millimeter smaller than 0.9mm in real conditions
Operating Range	Capable range 50 – 4000 meters (164 – 13,123 feet)
Data Processing and Storage	On-board data processing with storage for > 1 month of data
Deployment Options	Non level deployment to within 15° Standard trailer or multiple trailers Vehicle mounted Permanent installation
Enviromental	Standard temperature: -30°C to +55°C Operational wind speed: 120km/h Rain: up to 60mm/h Relative humidity: 0% to 95%
Deployment Options	Fast non-level deployment to within 15°
Georeferencing	Integrated Leica Geosystems total station
Power Options	Integrated generator Integrated solar panels External power supply of: 220V AC 50Hz 110V AC 60Hz
Communication	Complete remote operation through Wi-Fi wireless link
