TrueView 515
Best performing LiDAR/Camera system in the mid-price range.
GeoCue’s TrueView® 515 is simply the best performing LiDAR/Camera system in the mid price range. The Version C system is now upgraded with Two New Oblique 26 MP Cameras (Version C) .This compact 3D Imaging System has impeccable definition along wires, superior ground cover beneath vegetation and sensitivity like we’ve never seen in this class system.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
TrueView 515 3D Imaging System
A compact, survey-grade LiDAR and imaging solution engineered for reliable 3D data capture. The integrated sensor architecture and precision navigation components ensure consistent, high-quality results across a wide range of mapping environments.
| Specification | Value |
|---|---|
| Data Collection | LiDAR + Imagery |
| Laser Scanner | Hesai Pandar XT32M1X |
| LiDAR Beams/Returns | 32/2 |
| LiDAR Range – Usable | 80 m @ 20% reflectivity |
| Cross-track Field of View (FOV)/Combined | 120° |
| Pulse Repetition Rate | 640 kHz |
| Scanner Performance |
|
| GNSS/INS Performance |
|
| System Performance |
|
| Camera Sensor | 2 * 26 MP Sony mechanical leaf shutter, calibrated |
| Mass | 1.99 kg (payload unit only – no accessories including battery, mount, antenna, power adapter) |
Direct Colorization
GeoCue’s custom integration of dual cameras with the LiDAR system to allow ray-tracing, which achieves direct colorization for a more accurate point cloud representation.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
A 905 nm class 1 eye safe, HESAI XT32 LiDAAR
Two 26 MP Oblique Cameras with 113° FOV

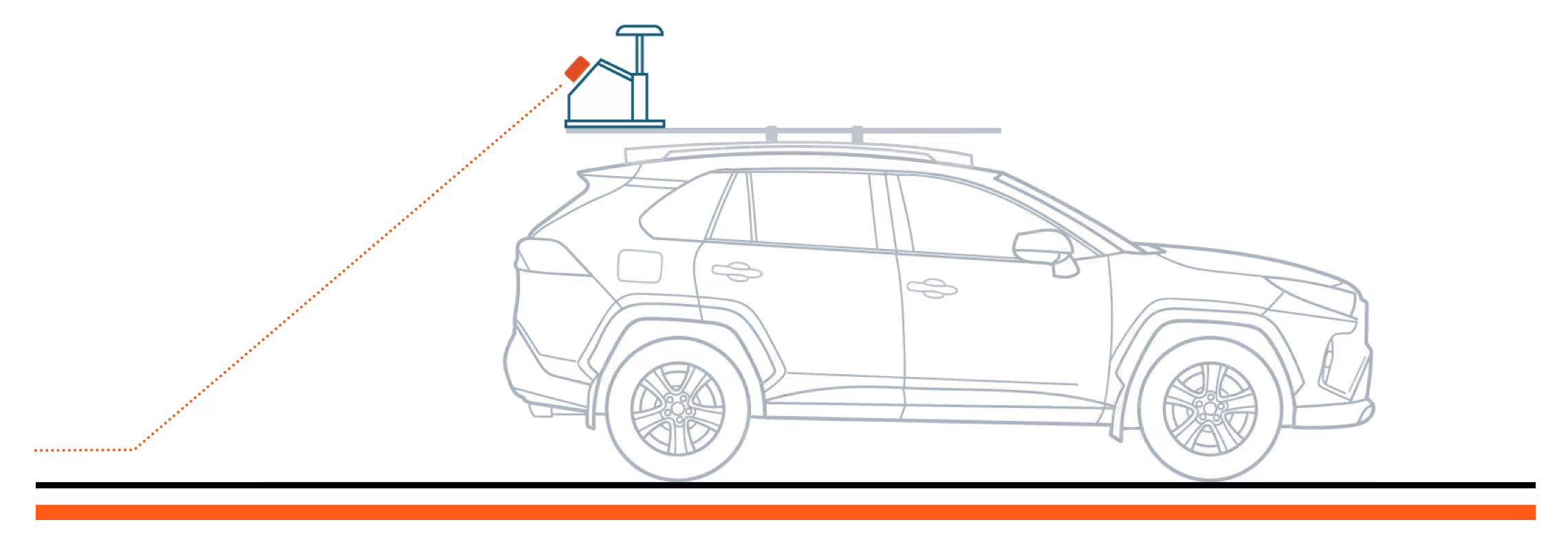

Flexiblity in the field, with optional mobile vehicle mount
In your mix of projects, do you encounter times when you cannot fly, perhaps due to busy high-population areas or other factors? Use this sensor in mobile mapping mode. Or, do you need multiple perspectives with greater detail? Use both drone and mobile LiDAR modes. It’s the best of both worlds, to recreate your world!
Built for Complex Survey Environments
From heavily vegetated terrain to industrial stockpiles and vertical infrastructure, the system is engineered to perform in demanding conditions. Advanced ground-point extraction enables accurate terrain modelling beneath dense canopy, while reliable volumetric calculations support efficient stockpile measurement and management. Its ability to capture detailed structural geometry also makes it ideal for precise 3D modelling of buildings, towers, and other vertical assets.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
Everything You Need for Seamless Deployment
TrueView 515 3D LiDAR Payload
TrueView Battery & Battery Charger
USB Thumbdrive
GNSS Antenna
Sensor Hardcase
LP360 Drone Processing Software
FLEX Offers Affordable Pricing and Flexible Software Subscription for GeoCue’s TrueView 515, 535, and 540.
GeoCue proudly presents FLEX, an innovative sales model designed to bring unprecedented flexibility and affordability to the TrueView 515, 535, and 540 3D Imaging Systems. FLEX provides users the opportunity to acquire TrueView payloads at an attractive price while introducing a simplified and efficient yearly subscription model for LP360 software.
Need a Quote?
We’ll Call You
Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.
Why Choose FLEX?
In response to industry trends, GeoCue introduces FLEX as a strategic move to meet customer demands for a comprehensive solution. FLEX is not just about pricing; it’s about empowering our customers with a seamlessly integrated hardware and software solution.
TrueView Rental Option
Explore Drone LIDAR at Low Risk and Low Cost The TrueView 515 3D Imaging System is available under our rental offering!
This unique business model allows customers to acquire a True View 3DIS under a rental model for periods as short as 1 month! This is an excellent model for seasonal use and surge capacity.
TrueView Applications
Utilise True View’s 3D Imaging Systems for a full range of applications.
Mining
Infrastructure
Land Development
Construction
Utilities
Inspection
View the TrueView 515 in Action
See the TrueView 515 in action through images that showcase its precision, versatility, and performance in real-world survey operations.
