Aerial Camera

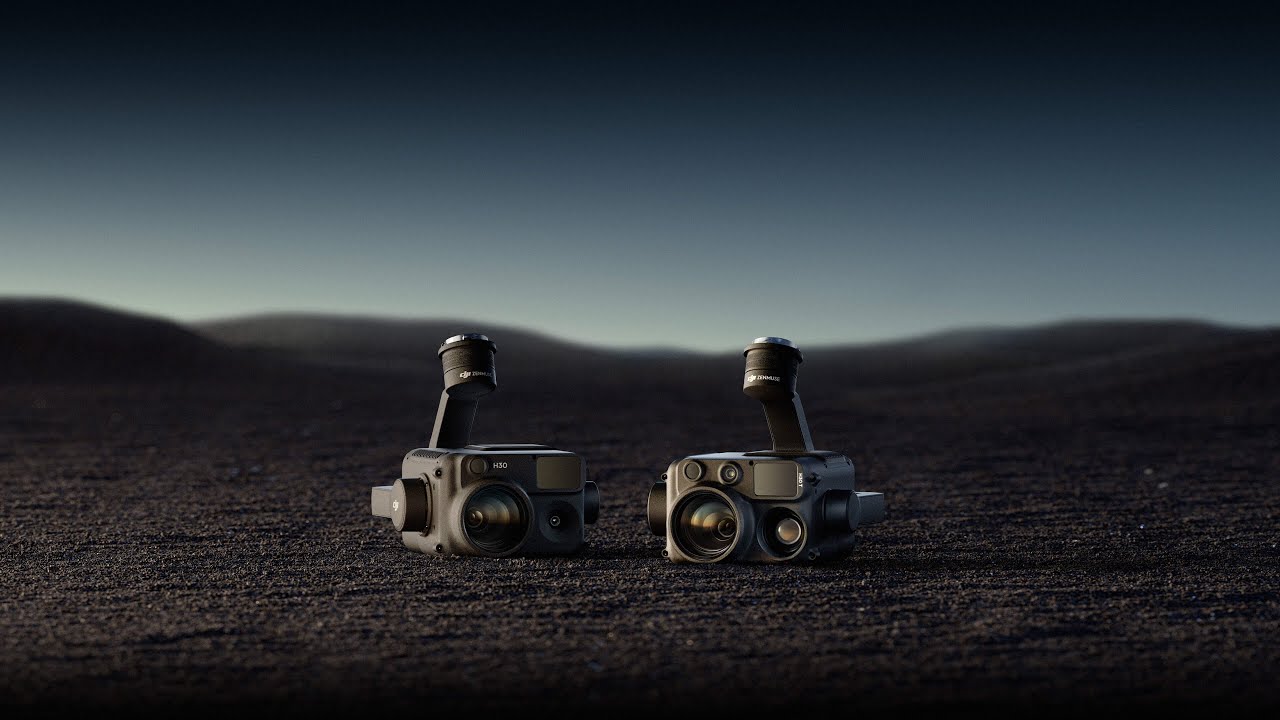

Zenmuse H30 Series

Unparalleled Vision, Day or Night

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

All-Weather Capability

Versatile Performance, Day and Night

Designed to perform around the clock, the Zenmuse H30 Series delivers dependable imaging in bright daylight, low light, and complete darkness. By combining visual, thermal, and intelligent sensing technologies, it supports clear situational awareness and consistent results across a wide range of operational scenarios.

Datasheet

Zoom Camera

  • Up to 34Ă— Optical Zoom‌ and 400Ă— Digital Zoom
  • 40MP 1/1.8-inch CMOS Sensor
  • Video Resolution: Max 3840Ă—2160@30fps

Wide-Angle Camera

  • Equivalent Focal Length: 24mm, DFOV: 82.1°
  • 48MP 1/1.3-inch CMOS Sensor
  • Video Resolution: Max 3840Ă—2160@30fps

Laser Range Finder

  • Measurement Range: 3-3000 m
  • Measurement Accuracy: ≤ 500 m: ±(0.2 m+measurement distanceĂ—0.15%)‌> 500 m: ±1.0 m

Infrared Thermal Camera (H30T only)

  • Equivalent Focal Length: 52mm, DFOV: 45.2°
  • Uncooled VOx Microbolometer
  • Photo Resolution: 1280Ă—1024
  • Video Resolution: 1280Ă—1024@30fps
  • Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

NIR Auxiliary Light

  • Wavelength: 850 nm
  • FOV: 4.6±0.6° (Round)
  • Safety Rating: Class 1
  • Illumination Range: Approx. 8m diameter circle at 100m distance
Zoom Camera
Wide-Angle Camera
Laser Range Finder
Infrared Thermal Camera (H30T only)
NIR Auxiliary Light
Extended Visual Reach

Further and Clearer ‌Vision

The Zenmuse H30 Series delivers sharp, detailed imagery at long distances, allowing operators to identify subjects and assess situations with confidence. Advanced optics and intelligent image processing ensure clarity and accuracy, even when observing distant or hard-to-reach targets.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Up to 34× Optical Zoom‌ and 400× Digital Zoom

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34Ă— optical zoom and an incredible 400Ă— digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.

More Stable Imagery from the Zoom Camera

With DJI’s latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

Max 3000m Laser Range Finder

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.
Clarity After Dark

Enhanced Night Vision

Designed for low-light and nighttime operations, the Zenmuse H30 Series reveals critical details that are often missed in darkness. With advanced night vision and intelligent enhancement, operators gain clear situational awareness to perform inspections, monitoring, and response tasks with confidence around the clock.

Supports Full-Color Night Vision

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

Supports Black and White Night Vision and NIR Illumination

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.
Thermal Precision

More Powerful Infrared Performance

Built for demanding scenarios, the H30 Series elevates infrared imaging with clearer heat detection and improved sensitivity. It enables confident identification and tracking of thermal targets, even in complex environments or low-visibility conditions.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

1280Ă—1024 Infrared Resolution

The infrared thermal camera boasts a resolution of 1280Ă—1024, 4Ă— the previous generation, with up to 32Ă— digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.

High-Res Mode for Precise Observation

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

Visual and IR Cameras Simultaneous Zoom

The Zenmuse H30T’s zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

Temperature Measurement Range from -20° to 1600°C

With the installation of an infrared density filter, [9] the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.
Intelligent Versatility

Smarter Multi-Scenario Operations

The Zenmuse H30 Series adapts seamlessly to diverse missions, combining multiple sensors and intelligent algorithms to streamline operations. From inspections to emergency response, it provides reliable, efficient performance across every scenario.
Smart Capture for Improved Imaging
In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.
Electronic Dehazing
In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.
Built for Any Condition

Superior Environmental Adaptability

The Zenmuse H30 Series thrives in challenging environments, delivering stable performance in extreme temperatures, rain, dust, or wind. Its robust design ensures reliable operation no matter the conditions.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

IP54
Ingress Protection

With an IP54 dust and water resistance rating, the Zenmuse H30 Series can operate safely and reliably even in harsh working conditions.

-20° to 50° C (-4° to 122° F) Operating Temperature

The Zenmuse H30 Series is built to work in temperatures ranging from -20° to 50° C (-4° to 122° F), meeting all-weather operational needs.
Seamless Data Management

More Reliable Information Sync and Retention

Operators can rely on real-time data synchronization and secure storage, keeping all imagery and measurements consistent throughout the mission. This ensures quick access to reliable information for analysis, reporting, and decision-making.
Supports Pre-Recording
All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.
Media and Transmission Encryption with One-click Log Clearance
The Security Code function allows for the encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. Additionally, it supports one-click log clearance to prevent information leaks.
Cloud Information Sync for Collaborative Ground and Air Operations
Operators can check live views from the Zenmuse H30 Series through the cloud platform on DJI FlightHub 2 to stay up to date with on-site dynamics. This enables rapid remote command and facilitates coordinated air-to-ground operations.
Application Scenarios

Applications Across Critical Operations

From urban planning to disaster response, our solution adapts to a wide range of industries. Whether you need high-precision mapping, detailed cadastral surveys, efficient construction monitoring, or rapid assessment of natural hazards, every operation is supported with accuracy and efficiency.

Enquire Now

Need a Quote?

We’ll Call You

Simply enter your contact details and one of our specialists will call you to discuss your requirements and provide a detailed quotation.

Public Safety

Electricity

Oil and Natural Gas

Water Conservation

Forestry

Related Media

See the Zenmuse H30 Series in Action

Watch the Zenmuse H30 Series in action and see how its multi-sensor capabilities, powerful zoom, and advanced imaging technology deliver precise, reliable results across day and night operations. Explore real-world scenarios where speed, accuracy, and versatility come together.
